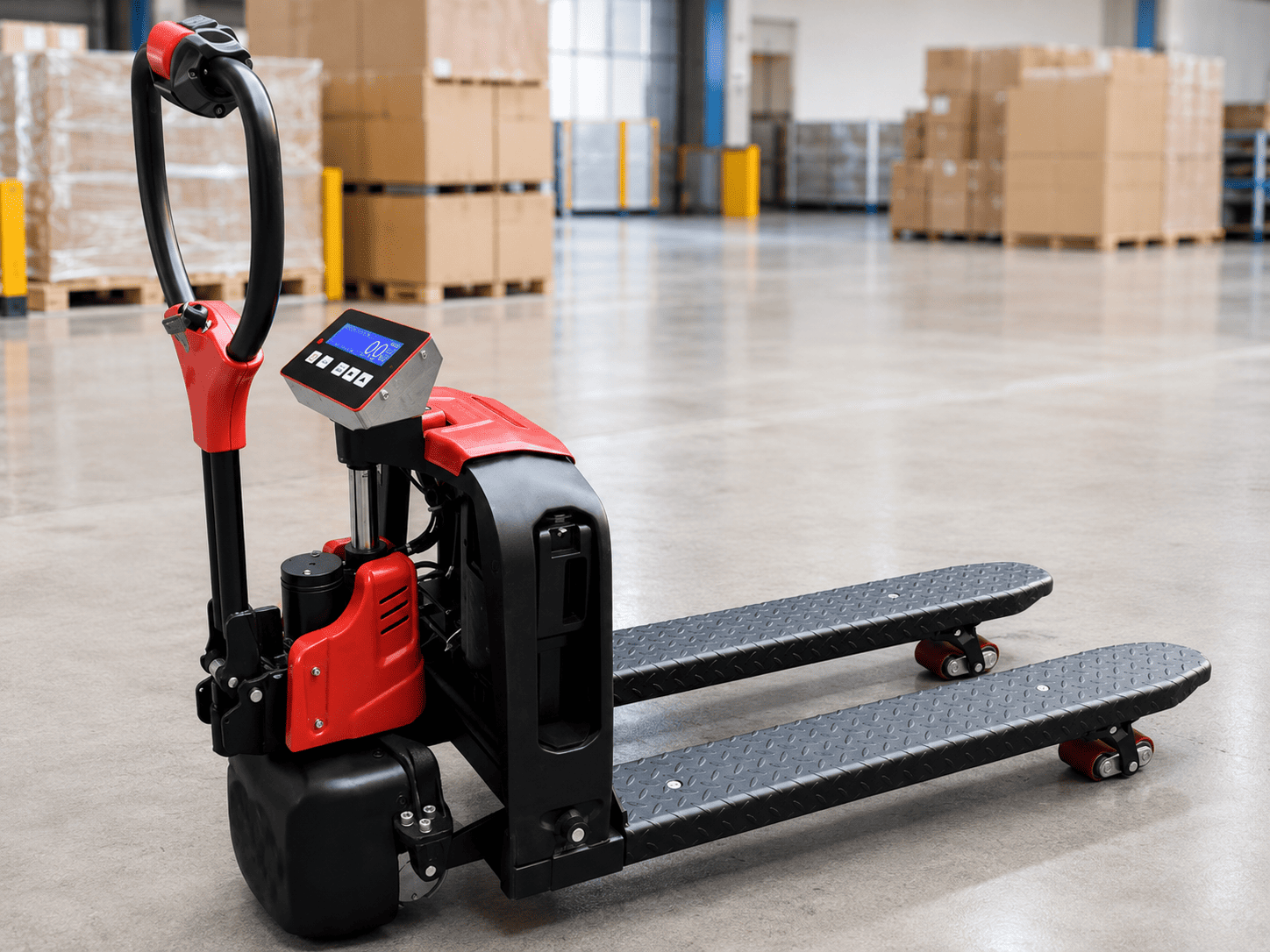

- SH-F4-Fully Electric Pallet Truck Scale

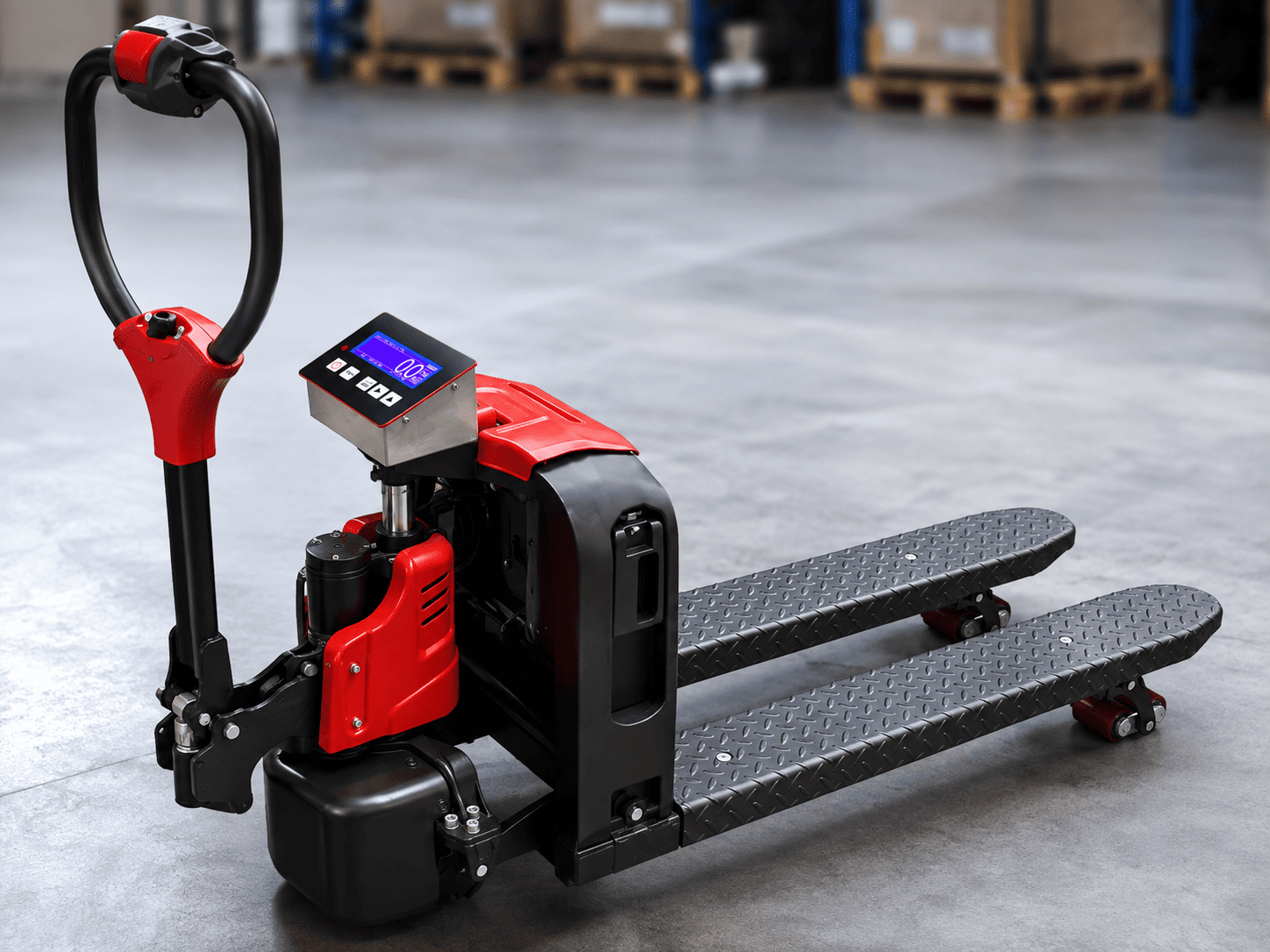

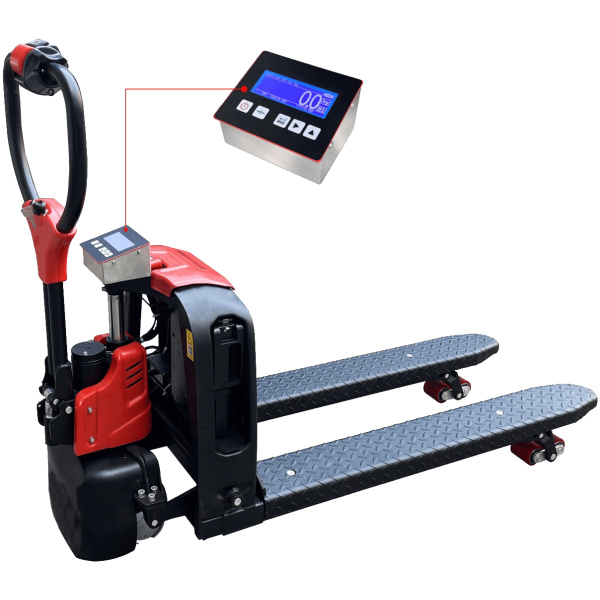

SH-F4 Integrates an electric motor with electronic weighing principles, allowing goods to be weighed at the same time they are being transported, No need to move goods again to a fixed scale for secondary handling.
Forward and reverse movement are electrically controlled, travel speed is close to walking speed, Lifting and lowering retain the familiar operating method of a standard manual pallet truck, Balances operating convenience with equipment cost.

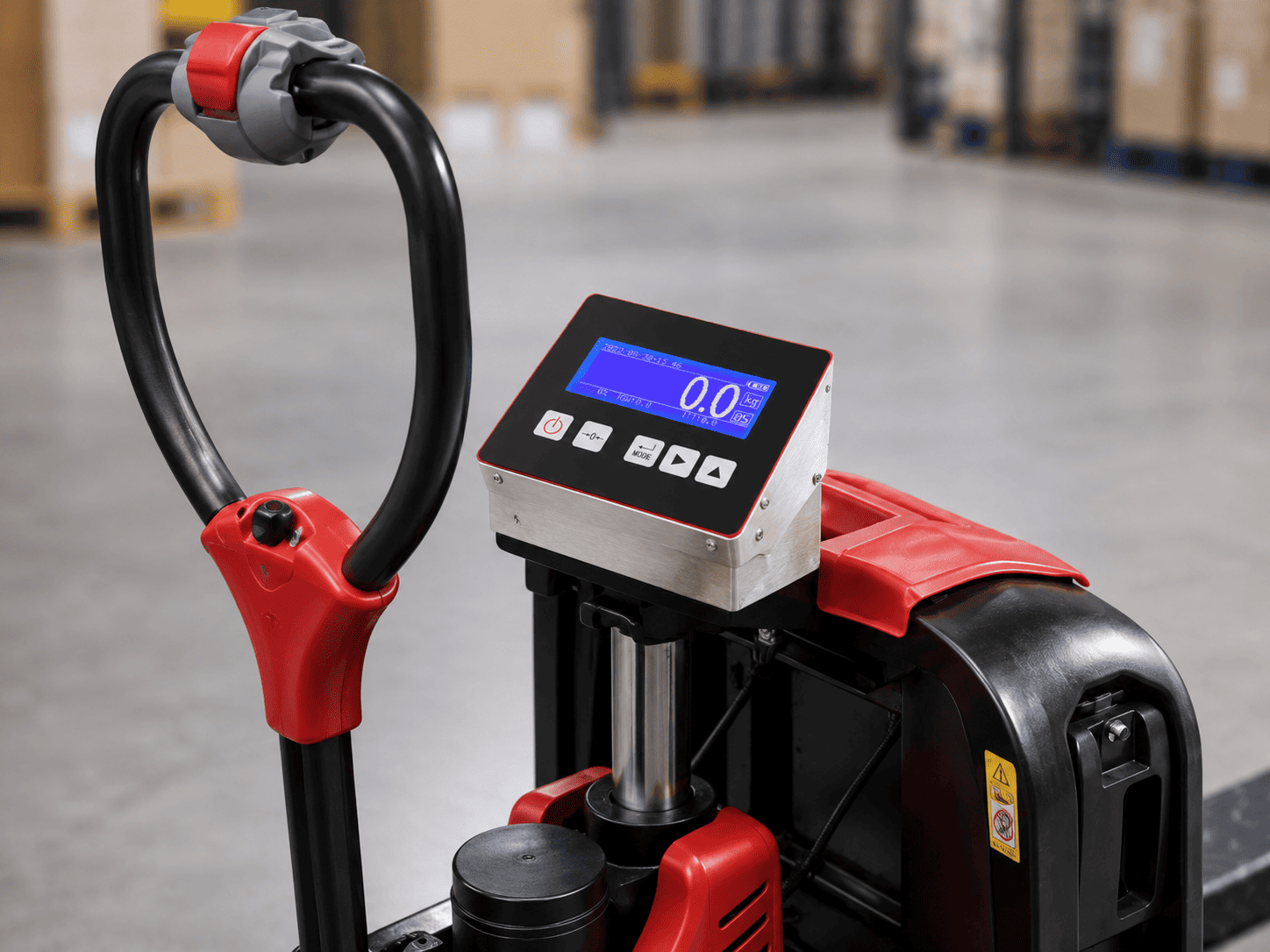

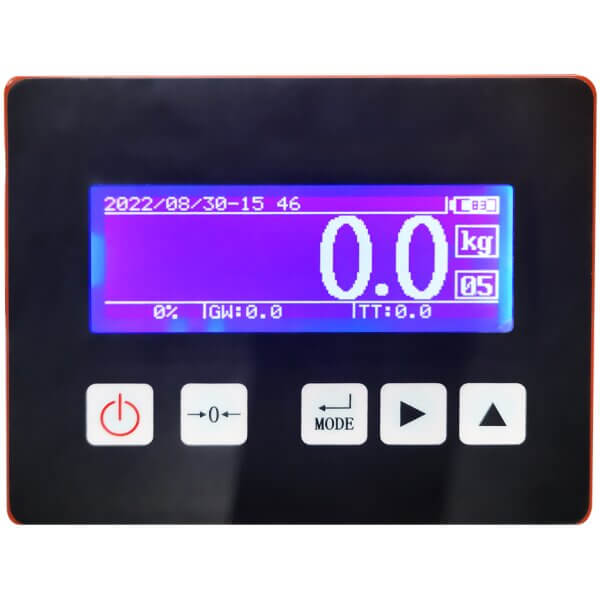

The weighing system is equipped with four sets of high-precision 1T load cells and a digital signal junction box, and provides weighing, counting, multiple units, filtering, functions such as zero tracking and overload alarms.
The scale body undergoes rust removal and deoxidation treatment in the initial stage, finally finished with high-temperature baking paint, Improves coating adhesion and wear resistance.

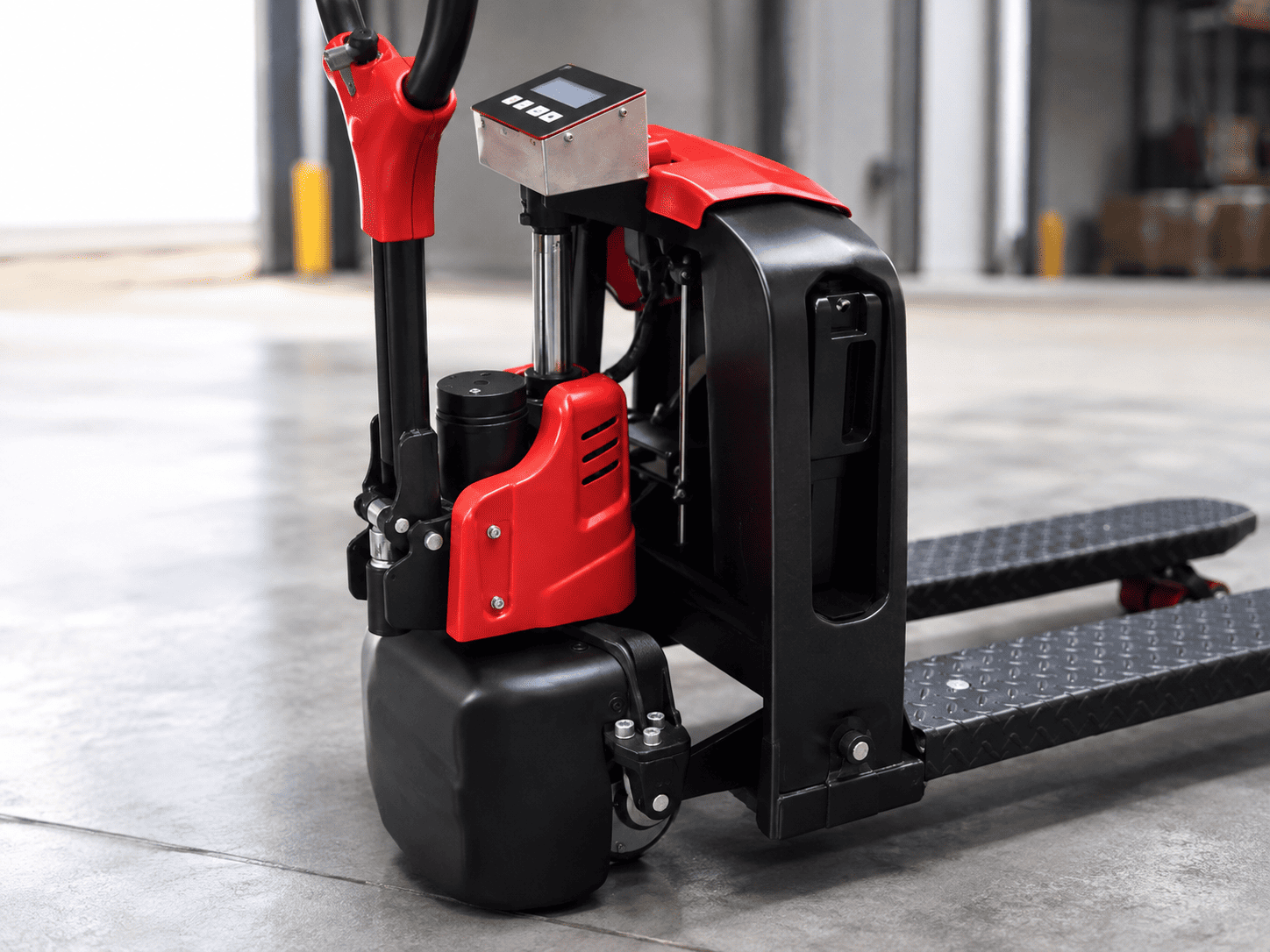

the weighing forks useㄇpatterned steel plate type, thickness is 50mm, Improves fork strength and protects internal load-bearing components.
uses PU Polyurethane caster wheels, features cushioning, impact-resistant and wear-resistantCharacteristics, Equipped with cast-steel wheels and bearings, makes movement and turning more flexible.
Forward and reverse movement are electrically controlled, No manual pushing is required, Can reduce labor required for long-distance handling.
The lifting and lowering operation is the same as that of a standard manual pallet truck, Retains familiar operation while reducing lifting-motor costs.
travel speed is close to normal operator walking speed, Provides a safe travel speed suitable for on-site operation.
The electric model has a smaller turning radius, Improves mobility in warehouse aisles and confined spaces.

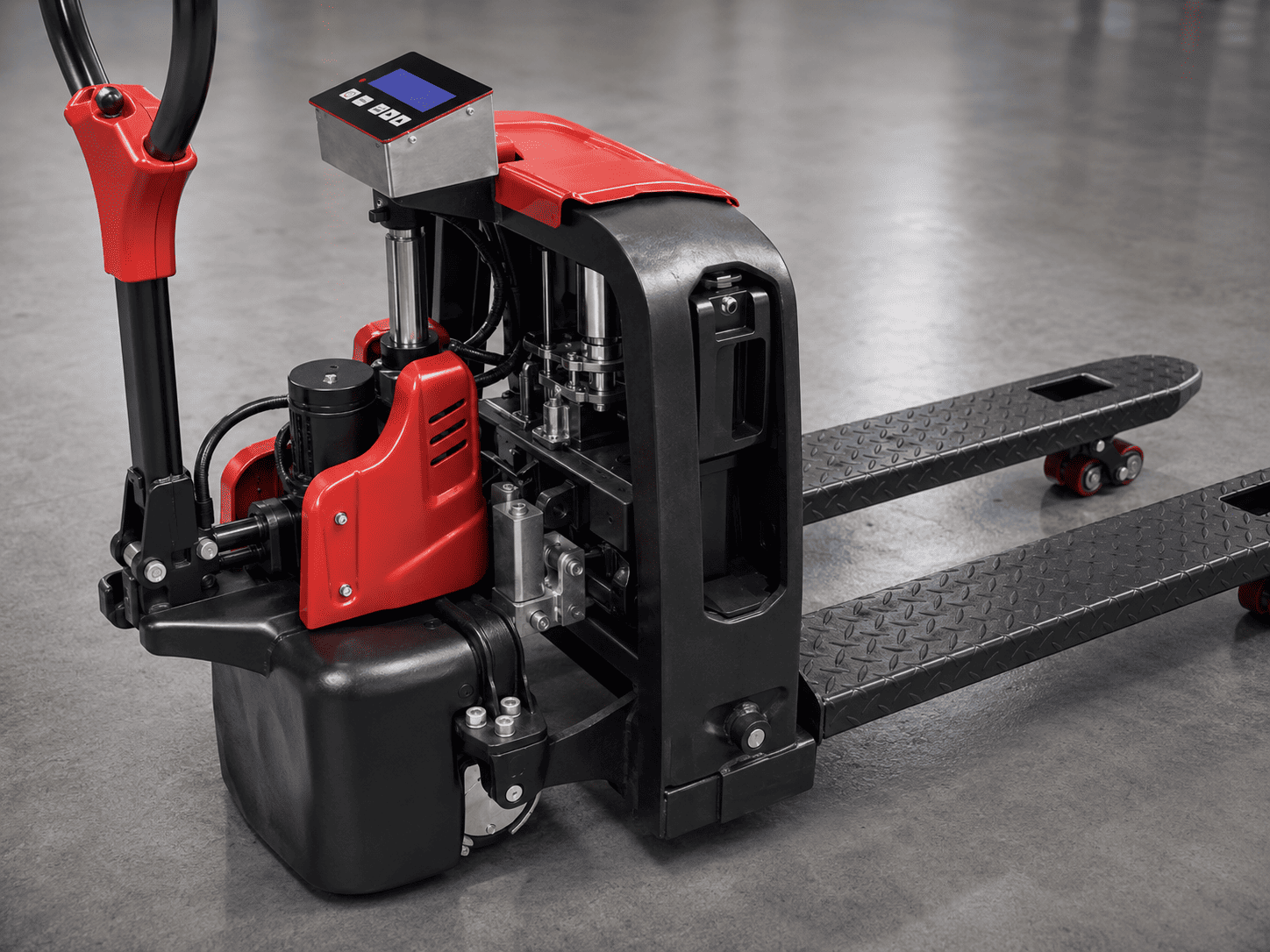

uses impact-resistant alloy-steel high-precision 1T load cells total 4 set, Paired with a digital signal junction box 1 set, Provides stable weight measurement.
Features filtering functions that reduce the effects of vibration and movement, Improves the stability of mobile equipment during on-site weighing.
Provides automatic zero tracking and overload alarm functions, and allows the gross weight of the item to be preset.

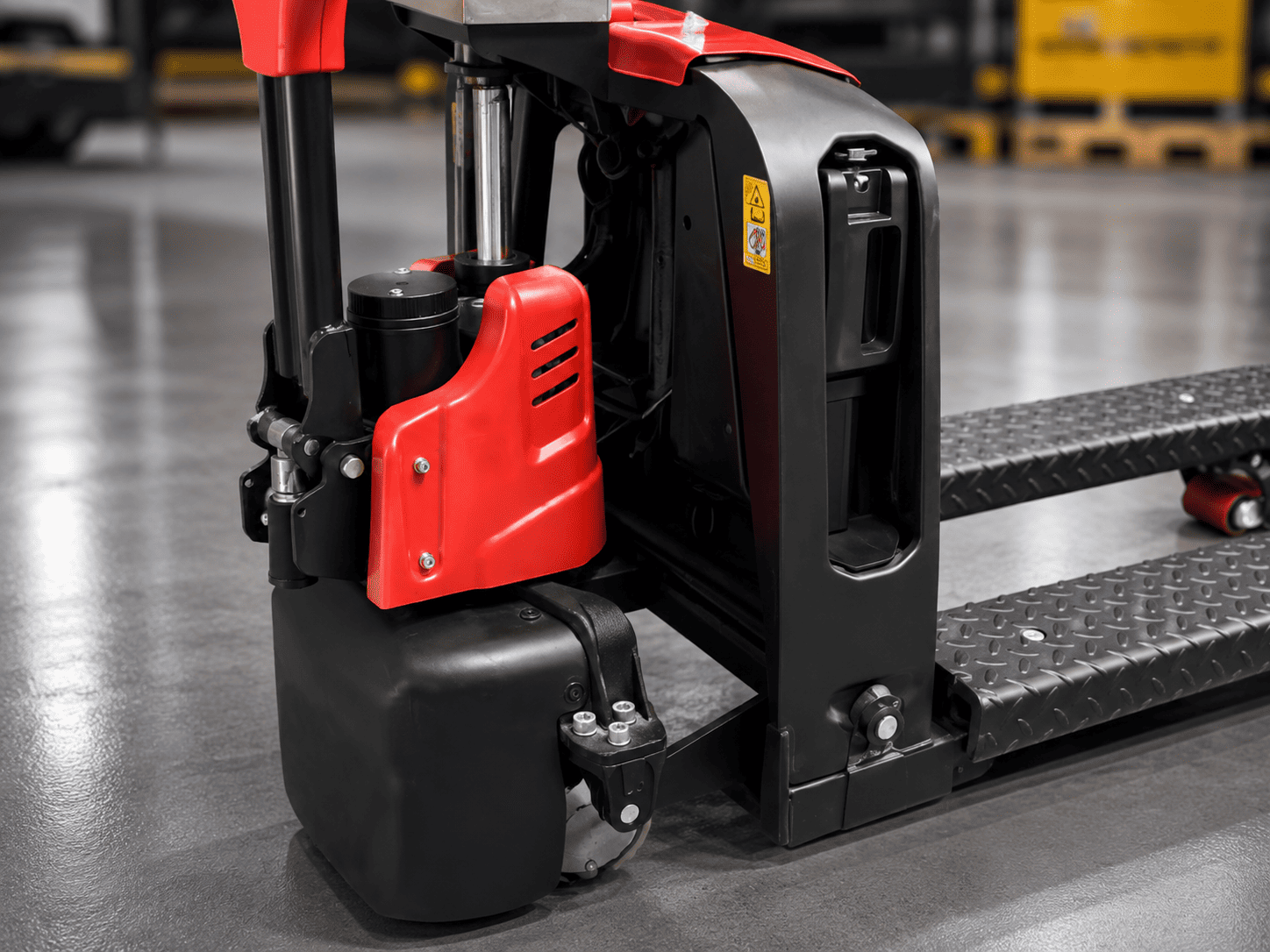

equipped with 24V / 20Ah lithium battery, The original specification indicates a standby operating time of approximately 200 hours.
configuration DC24V 5A charger, The power specification is listed as 100～240V, 50/60Hz.
A printer can be selected according to actual operational needs, Configuration must be confirmed in advance when ordering.
Bluetooth communication can be selected as an option if required, Improves flexibility for weight-data transmission and downstream applications.
| model | maximum capacity | sensitivity | fork width | inner fork width | outer fork width | fork length | fork lifting height | machine weight |
| 500type | 1T～2T | 0.2～1kg | 160mm | 240mm | 555mm | 1150mm | minimum95～maximum200mm | 138kg |
| 600type | 1T～2T | 0.2～1kg | 160mm | 370mm | 685mm | 1150mm | minimum95～maximum200mm | 144kg |
Integrates powered movement and electronic weighing in a single device, Reduces repeated handling steps, Improves on-site operating efficiency.
