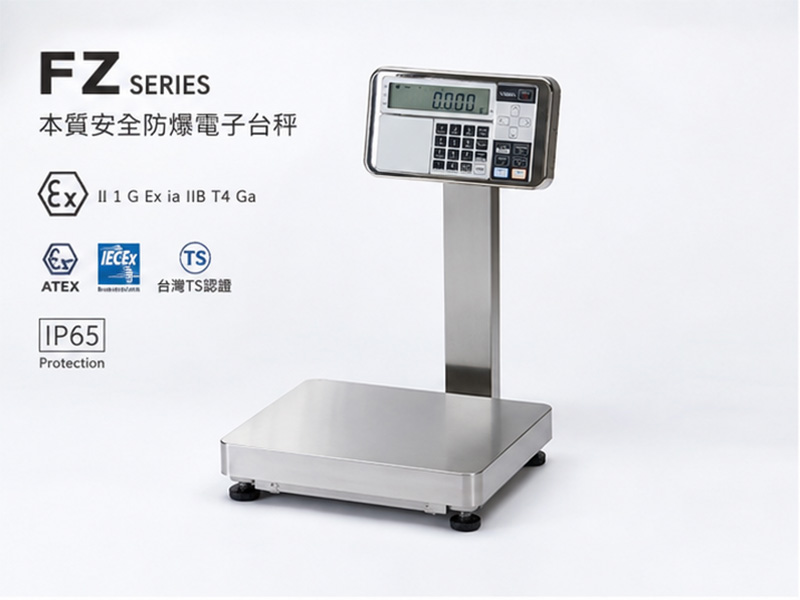

- Shinko FZ Intrinsically Safe Explosion-Proof Electronic Bench Scale
FZ The series uses tuning-fork sensors, Provides excellent stability, even when used in relatively harsh working environments, can still maintain stable and accurate weighing performance.
the product features ATEX, IECEx and Taiwan TS certification, protectionLevelup to IP65, explosion-proofLevelis II 1 G Ex ia IIB T4 Ga, suitable for pharmaceuticals, Chemical and other industrial environments requiring explosion-proof equipment.
the entire unit uses #304 stainless-steel construction, and provides i02 and i03 Two indicator options, Research, development, and production are all completed in Japan.

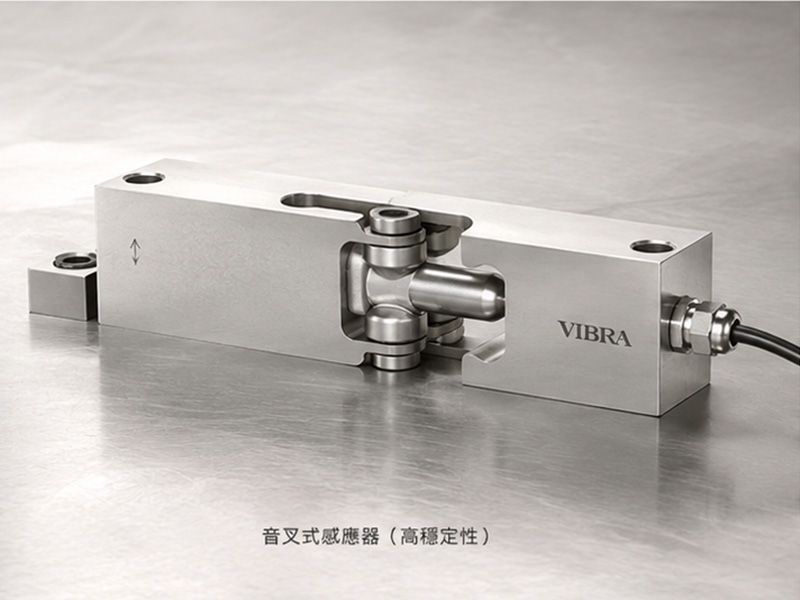

uses a tuning-fork frequency measurement system, Features high stability and excellent repeatability, Suitable for industrial environments requiring stable long-term measurement.
features ATEX, IECEx and Taiwan TS explosion-proof certification, suitable for pharmaceuticals, For use in chemical and other locations with hazardous-gas environments.
the series covers weighing capacities 620g to 300kg, according to precision-measurement needs, small bench scaleorSelect a suitable model for large platform-scale requirements.

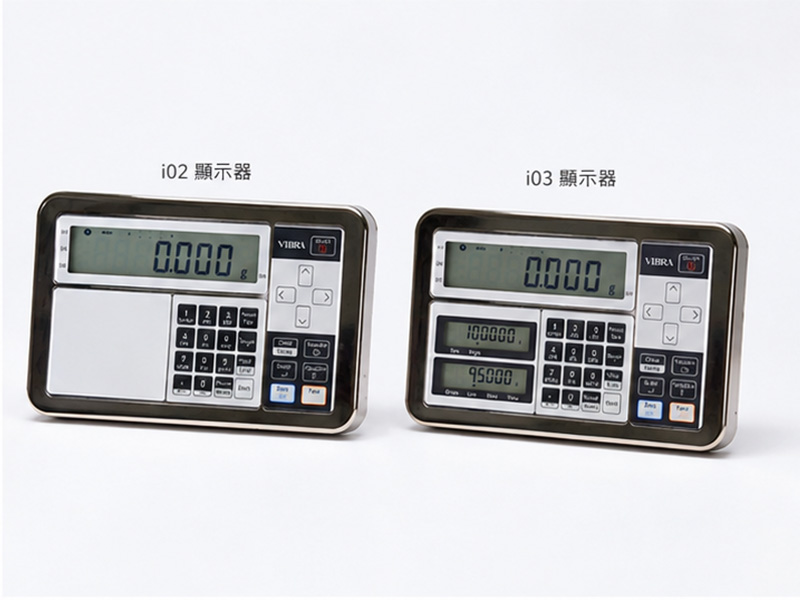

i02 uses a single-window display LCD display, Provides clear and intuitive weight-information display.
i03 can display tare deduction simultaneously, total weight, and the upper limit, two additional values such as the lower limit, Suitable for operations requiring more weighing information.
FZ This series uses external calibration weights for calibration, Weighing accuracy can be verified according to usage requirements.
provides RS232C oroptional connection interfaces, Easy to integrate with peripheral equipment and data systems.

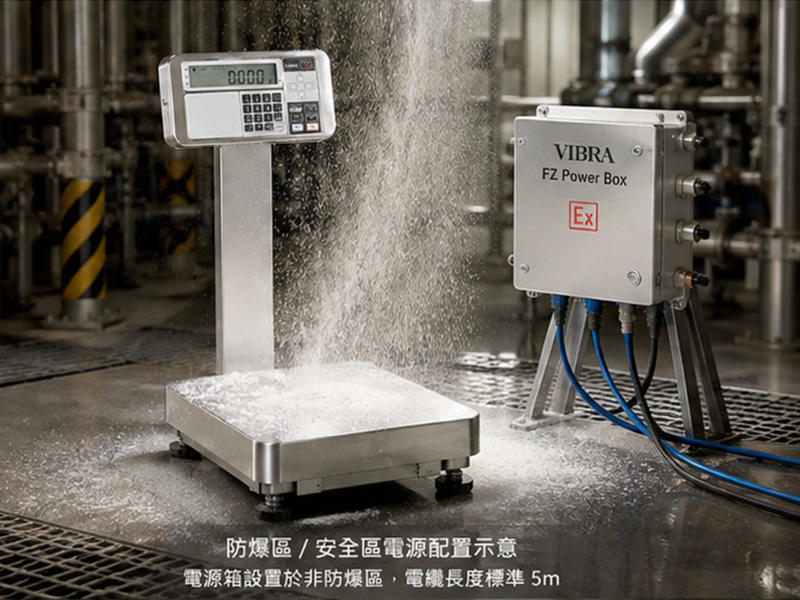

FZ The series comes standard with a dedicated power box, supplies the power required by the explosion-proof scale system.
The power box must be installed in a non-hazardous area, The standard cable length from the display to the power box is 5 m.
Taiwan TS certification number: TD0800039.
| model | capacity | readability | platform dimensions |
| FZ 623Ex | 620 g | 0.001 g | Ø 140 mm |
| FZ 3202Ex | 3200 g | 0.01 g | 190 × 190 mm |
| FZ 6202Ex | 6200 g | 0.01 g | 190 × 190 mm |
| FZ 15001Ex | 15000 g | 0.1 g | 190 × 190 mm |
| FZ 30K0.1GEx | 30 kg | 0.1 g | 310 × 330 mm |
| FZ 60K0.1GEx | 60 kg | 0.1 g | 380 × 530 mm |
| FZ 100K1GEx | 100 kg | 1 g | 380 × 530 mm |
| FZ 200K1GEx | 200 kg | 1 g | 380 × 530 mm |
| FZ 150K1GFEx | 150 kg | 1 g | 800 × 600 mm |
| FZ 300K1GFEx | 300 kg | 1 g | 800 × 600 mm |
Designed for specialized industrial environments requiring explosion-proof protection, Provides stable and reliable precision weighing solutions.
