PDA Label-Printing Bench Scale
PDA
LABEL PRINTING BENCH SCALE
LABEL PRINTING SCALE
PDA SERIES

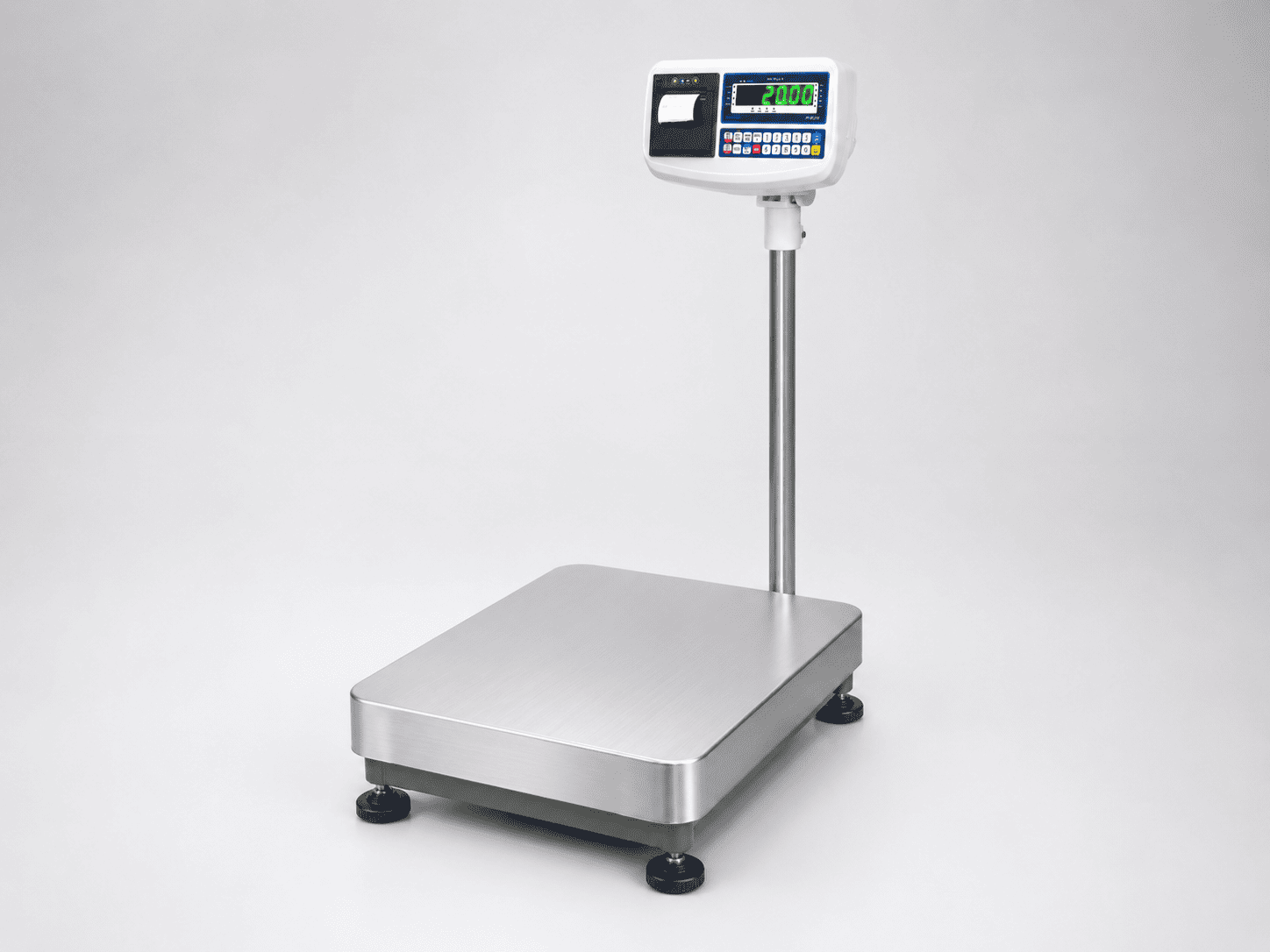

PDA Label-Printing Bench Scale
weighing, Counting and label printing are completed in one step, Improves on-site operating efficiency and management convenience.

PDA The label-printing bench scale features a built-in label printer, Not only provides precise weight measurement, and can print weight labels in real time, significantly improves daily operating efficiency.

An intuitive control panel makes setup simpler and faster, and provides free switching among multiple items, Serial-number starting value and batch-number settings, Can be used flexibly for different products and workflows.

also provides accumulation, tare, counting, Upper and Lower Limit Alerts, Functions including multi-unit conversion and dynamic weighing, is a model that balances weighing, A multifunction industrial weighing device with data management and label-output capabilities.

PRINTING Integrated label printing
FUNCTION weighing＋counting＋printing
APPLICATION production／packaging／material management
CORE FUNCTIONS
Multiple Functions・integrated operations
From precise weighing to real-time label output, Integrates functions commonly used on site.
01
Accumulation Function
Accumulation Function
GATHER
02
Tare Function
Tare Function
WEIGHT
03
Counting Function
Counting Function
PCS
04
Label Printing
Label Printing
PRINT
05
Upper and Lower Limit Display
Upper and Lower Limit Display
HI-LO
06
Multi-Unit Conversion
Multi-Unit Conversion
UNIT
07
Dynamic Weighing Mode
Dynamic Weighing Mode
ANIMAL
PRODUCT FEATURES
weighing completed・real-time printing
01
Freely switch among multiple items

Can store multiple weighing items and switch freely among them, convenient for different productsormultiple materials share the same weighing equipment.

02
Free serial-number setting

The starting serial number can be set as needed, convenient forProduct numberand production batch management.

03
batch-number settings

Weighing numbers for each batch can be set independently, making label information better aligned with actual production and material-management workflows.

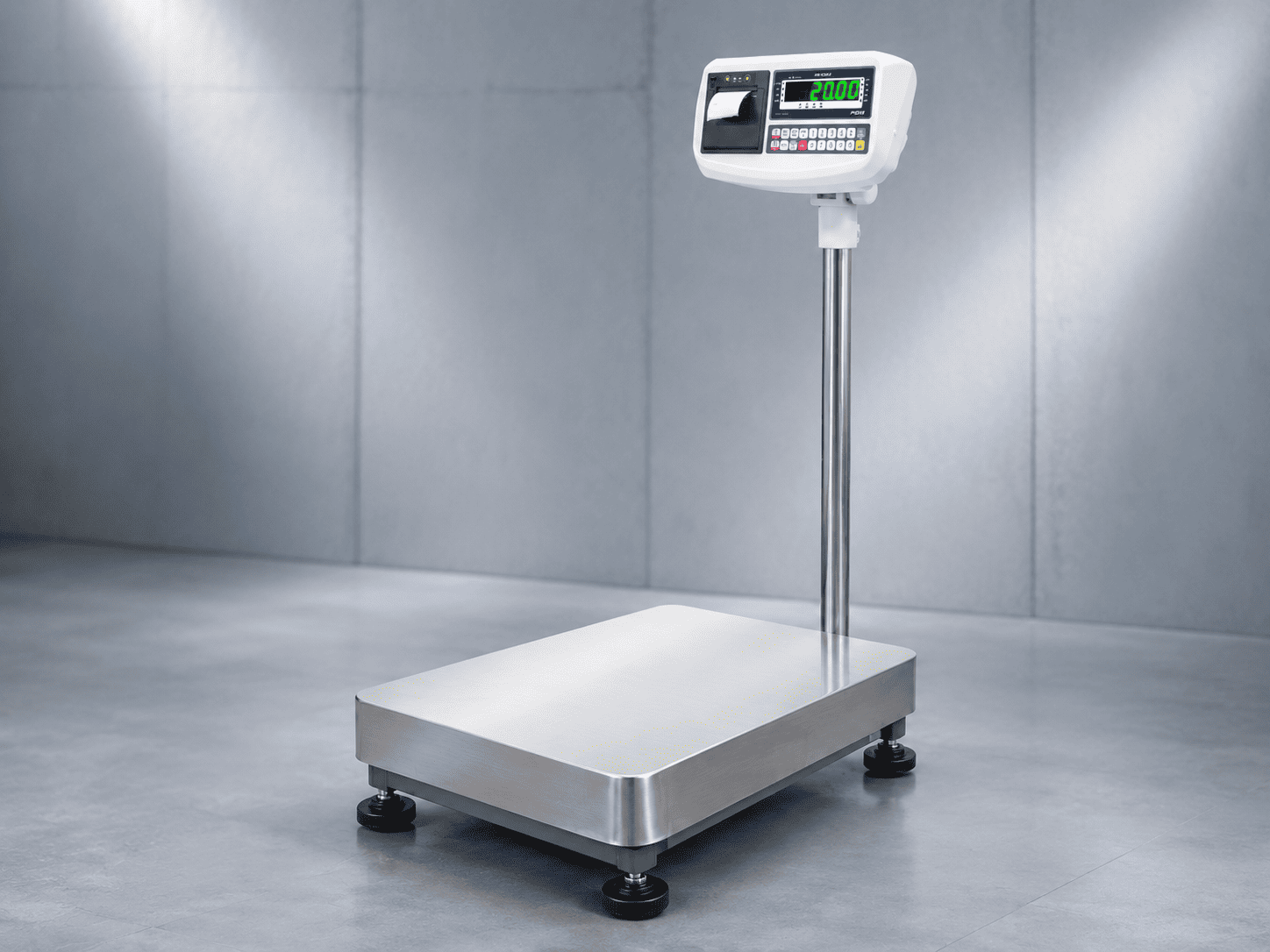

PDA Label-Printing Bench Scale

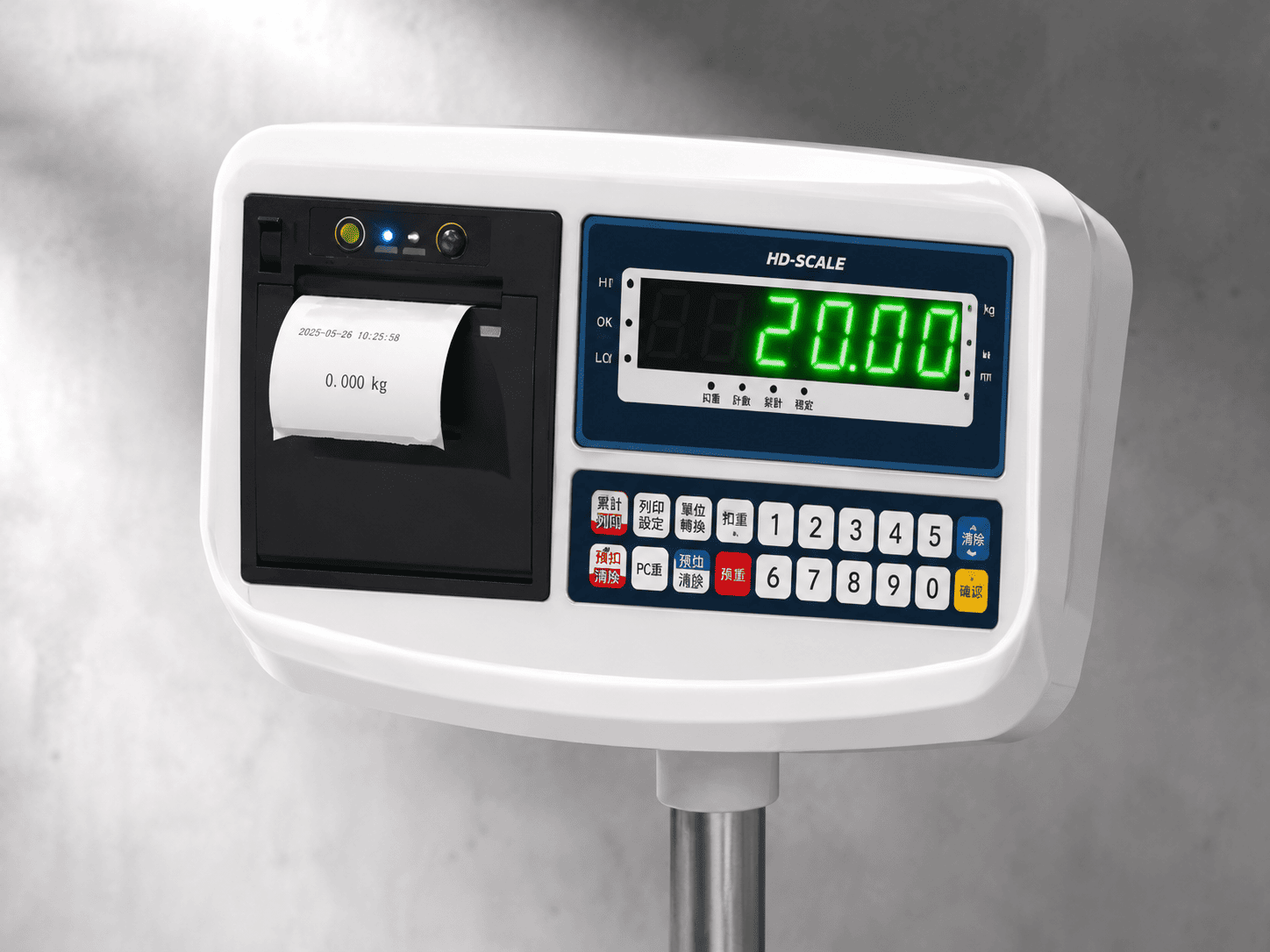

PDA Integrated Label Printer
LABEL PRINTING SYSTEM
integrated printing・completed in real time

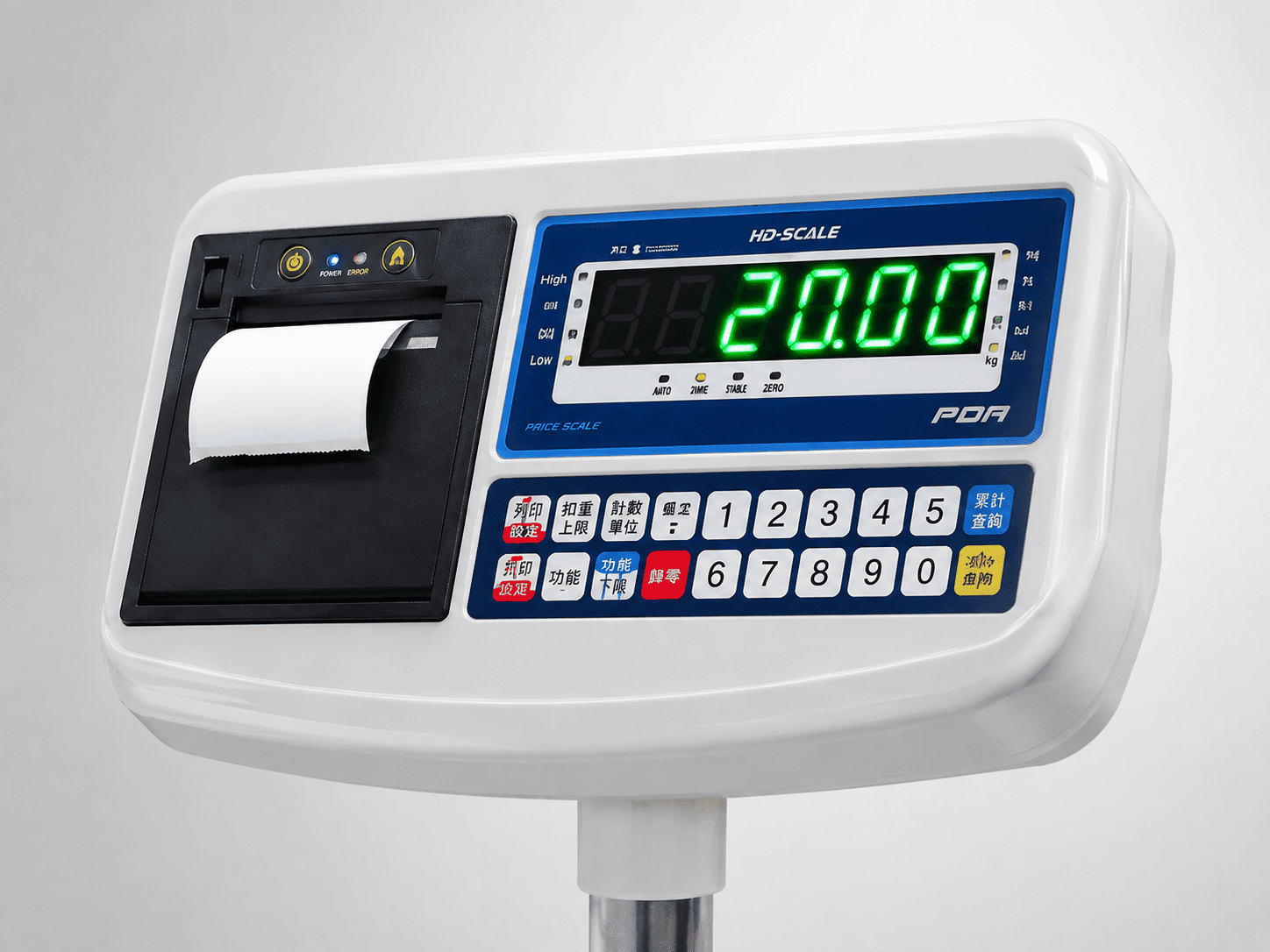

PDA Label-Printing Indicator
01
Integrated label printer

The equipment has a built-in label printer, Labels can be output directly after weighing is completed, Reduces the need to operate additional equipment separately.

02
Label formats can be freely edited

Labels can be adjusted according to actual products and management needsContentand format, Improves flexibility in label-information applications.

03
Three printing modes

Supports automatic printing after weight stabilizes, manual-button printing and pass-label printing, Can accommodate different production and inspection processes.

04
Multi-Unit Switching

supportskg kg, grams g, units tl, lb lb, Quantity PCS and multiple other units, Can be freely selected according to different operational needs.

SPECIFICATIONS
Specifications and Dimensions
Provides multiple platform sizes and capacity combinations, Can be selected according to the actual operating environment.
model Capacity Specifications Platform Dimensions
ASS 30Kg × 1g / 60Kg × 2g / 150Kg × 5g 26 × 32 × 8 cm
AS 30Kg × 1g / 60Kg × 2g / 150Kg × 5g 33 × 45 × 10 cm
AM 60Kg × 2g / 150Kg × 5g / 300Kg × 10g 40 × 50 × 14 cm
AN 150Kg × 10g / 300Kg × 10g 42 × 52 × 16 cm
AL 150Kg × 5g / 300Kg × 10g 45 × 60 × 16 cm
AE 300Kg × 10g / 500Kg × 20g 60 × 60 × 16.5 cm
AXS 200Kg × 10g / 300Kg × 20g / 500Kg × 50g 60 × 80 × 18 cm
AX 600Kg × 20g / 1000Kg × 50g 60 × 80 × 18 cm
JY SCALE · PDA SERIES
precision weighing・real-time printing

convert weighing, Integrates labeling and data management in the same device, Makes the production process faster, intuitive and efficient.
