ADC-II Electronic Counting Bench Scale
ADC
ELECTRONIC COUNTING SCALE SMART COUNTING
COUNTING SCALE
ADC-II SERIES

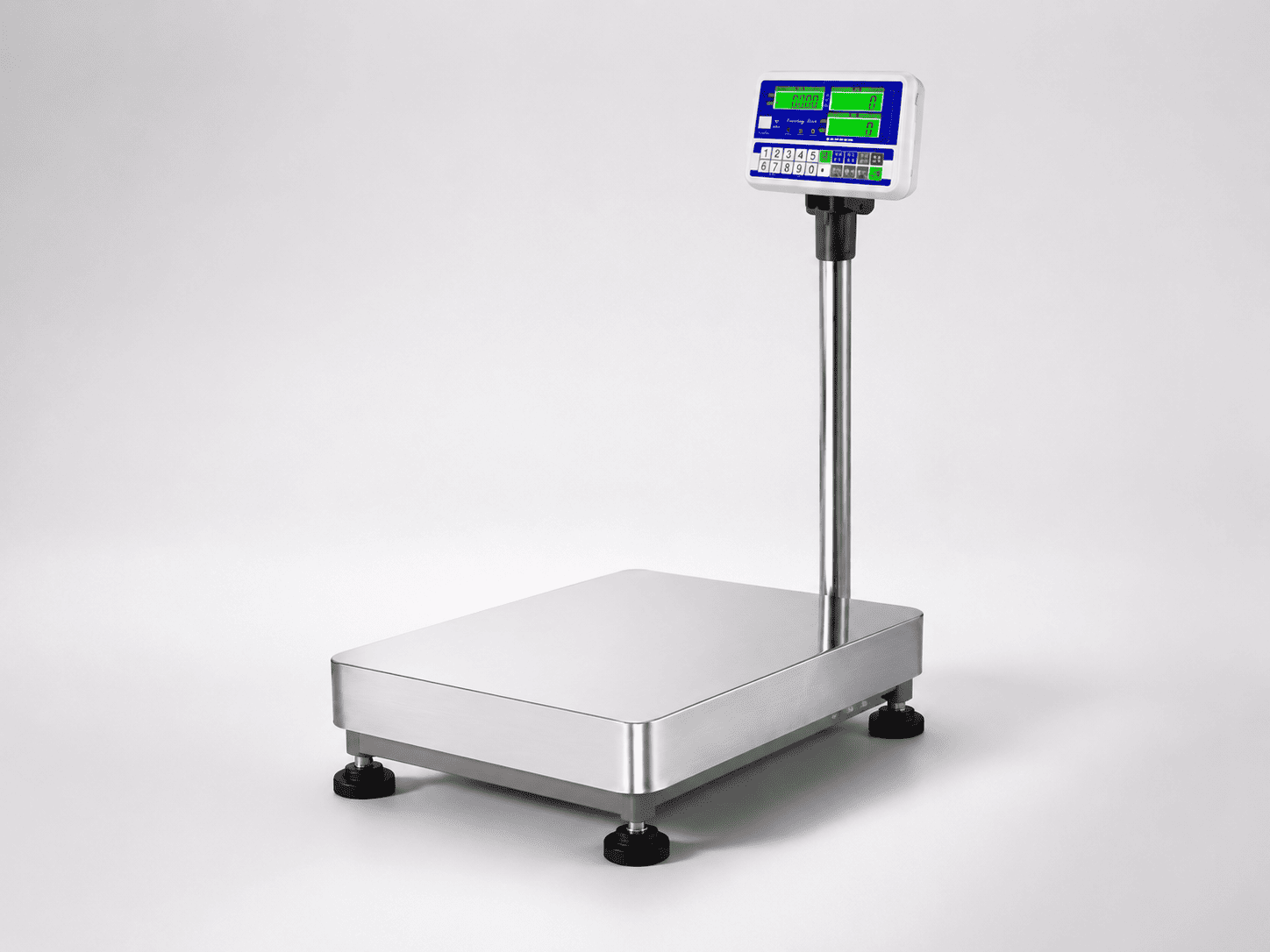

ADC-II Electronic Counting Bench Scale
High-efficiency, high-precision electronic counting indicator, also supports counting, weighing and smart-management functions.

ADC-II The electronic counting bench scale uses an intuitive LCD Black Digit Display, with green backlight, Makes data clear at a glance, Suitable for industrial sites and counting various types of parts.

Can operate continuously for approximately on a full charge 150 hours, provides counting, Upper and lower weight-limit alerts, Automatic Zero Tracking, Zero reset and multiple accumulation-memory functions, Can accurately display unit weight, total weight andQuantity(PCS).

Suitable for plastics, screws, for hardware parts and other solid objectsQuantitycalculation, an ideal solution for improving operating efficiency and measurement accuracySolutions.

DISPLAY LCD black digits＋green backlight
ACCURACY 1 / 20000
BATTERY approximately 150 hours
CORE FUNCTIONS
Multiple Functions・Precision Counting
Integrates common counting and weighing functions, Improves operating efficiency and data-management convenience.
01
Accumulation Function
Accumulation Function
GATHER
02
Tare Function
Tare Function
WEIGHT
03
Upper and Lower Limit Display
Upper and Lower Limit Display
HI-LO
04
Multi-Unit Conversion
Multi-Unit Conversion
UNIT
05
Counting Function
Counting Function
PCS
06
Zero Tracking
Zero Tracking
ZERO
PRODUCT FEATURES
high-efficiency counting・stable and reliable
01
Black Digits with Green Backlight

LCD Black text display with green backlight, display is clear and easy to read, make weight, unit weight andQuantitymore intuitive information.

02
Precision Counting Applications

Can accurately display unit weight, total weight andQuantity(PCS), Suitable for plastics, screws, parts and various solid objectsQuantitymanagement.

03
multiple data-memory functions

Supports multiple accumulation-memory functions, Helps manage data from different batches, Simplifies repetitive workflows.

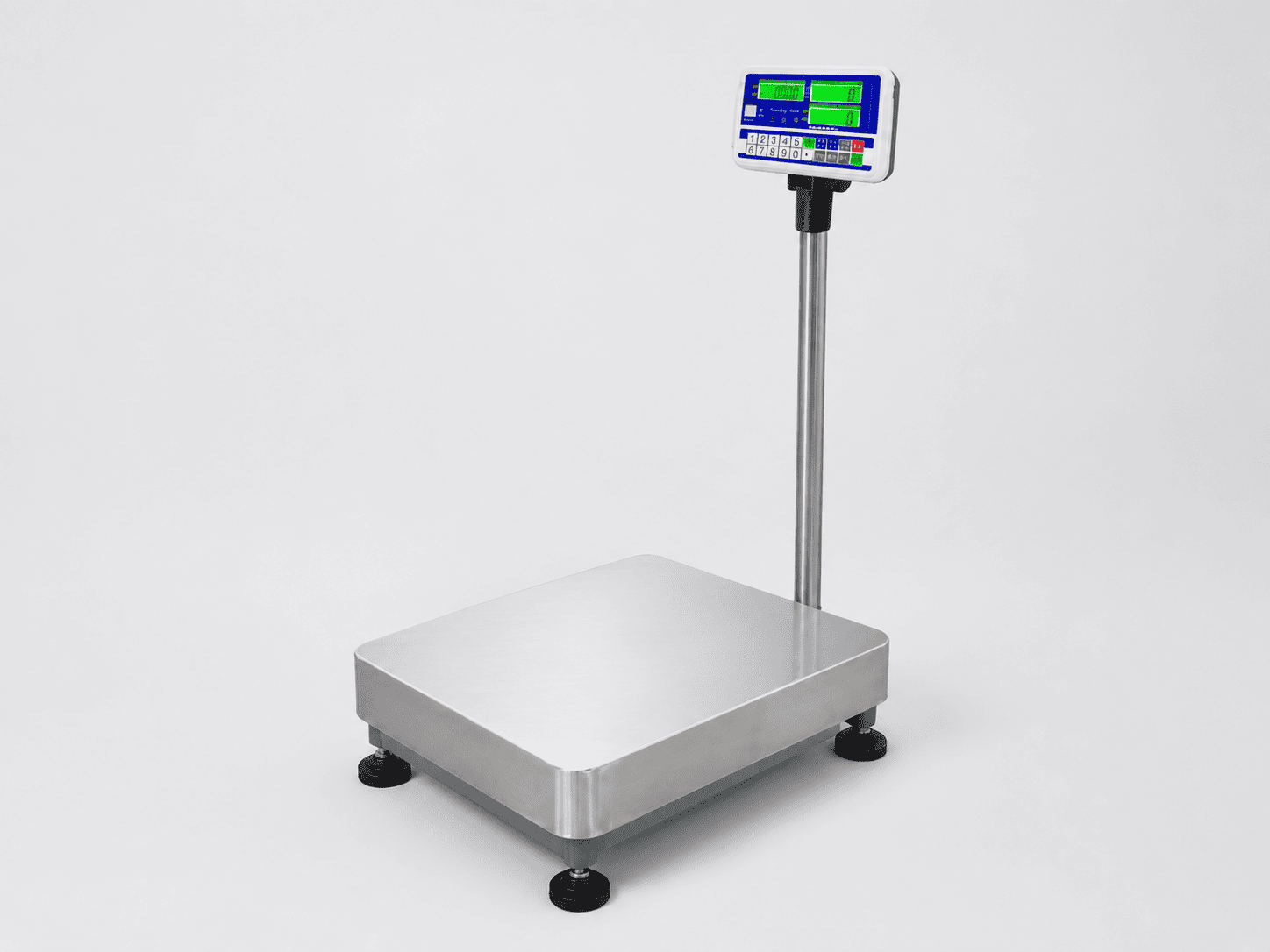

ADC-II Electronic Counting Bench Scale

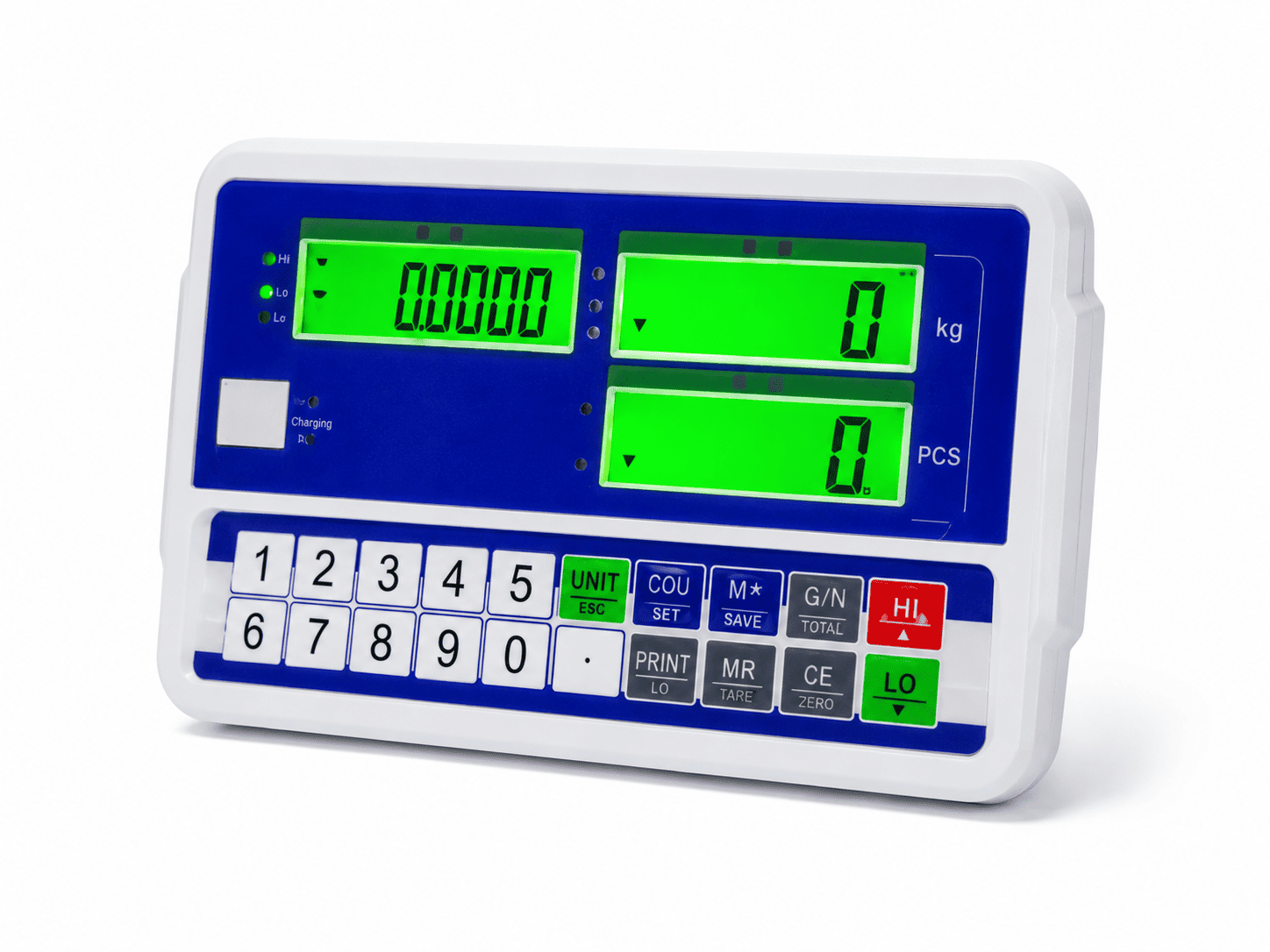

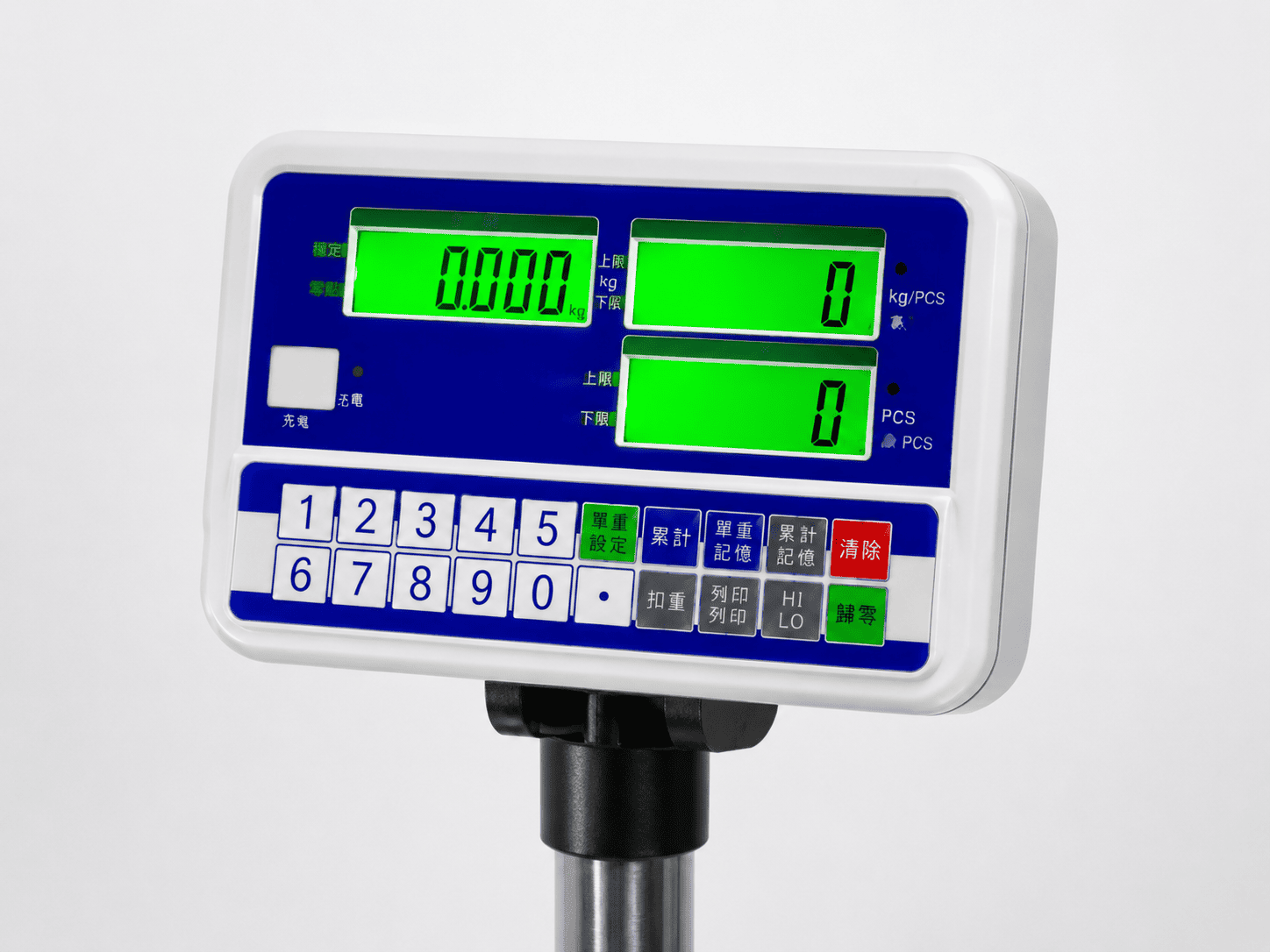

ADC-II Indicator Details
EQUIPMENT PERFORMANCE
fast response・stable operation
ADC-II Indicator
01
high speed AD chip

uses high-speed 24bits AD, fast response, stable weighing, Can improve overall measurement efficiency.

02
good interference resistance

Provides good resistance to interference, Data is less likely to be lost due to incorrect operation, The program can recover automatically.

03
automatic zero tracking at startup

Features zero reset and automatic zero tracking, Fast and stable response, Improves ease of use.

04
Multi-Unit Conversion

supportskg kg, grams g, ounces oz, lb lb and other unit switching, Can flexibly support different operational requirements.

SPECIFICATIONS
Specifications and Dimensions
Provides multiple platform sizes and weighing-capacity specifications, Can be selected according to different work requirements.
model Platform Dimensions Capacity Specifications
ASS 260 × 320 mm × 80 mm 30Kg × 1g / 60Kg × 2g / 150Kg × 5g
AS 330 × 450 mm × 100 mm 30Kg × 1g / 60Kg × 2g / 150Kg × 5g
AM 400 × 500 mm × 140 mm 60Kg × 2g / 150Kg × 5g / 300Kg × 10g
AN 420 × 520 mm × 160 mm 150Kg × 5g / 300Kg × 10g
AL 450 × 600 mm × 160 mm 150Kg × 10g / 300Kg × 10g
AE 600 × 600 mm × 165 mm 300Kg × 10g / 500Kg × 20g
AXS 600 × 800 mm × 180 mm 200Kg × 10g / 300Kg × 20g / 500Kg × 50g
AX 600 × 800 mm × 180 mm 600Kg × 20g / 1000Kg × 50g
JY SCALE · ADC-II SERIES
Precision Counting・Smart Management

also supports counting, weighing, display and management efficiency, Helps make on-site operations more precise, more stable.
