ADP-II High-Precision Bench Scale
ADP
PRECISION WEIGHING BENCH SCALE
BENCH SCALE
ADP-II SERIES

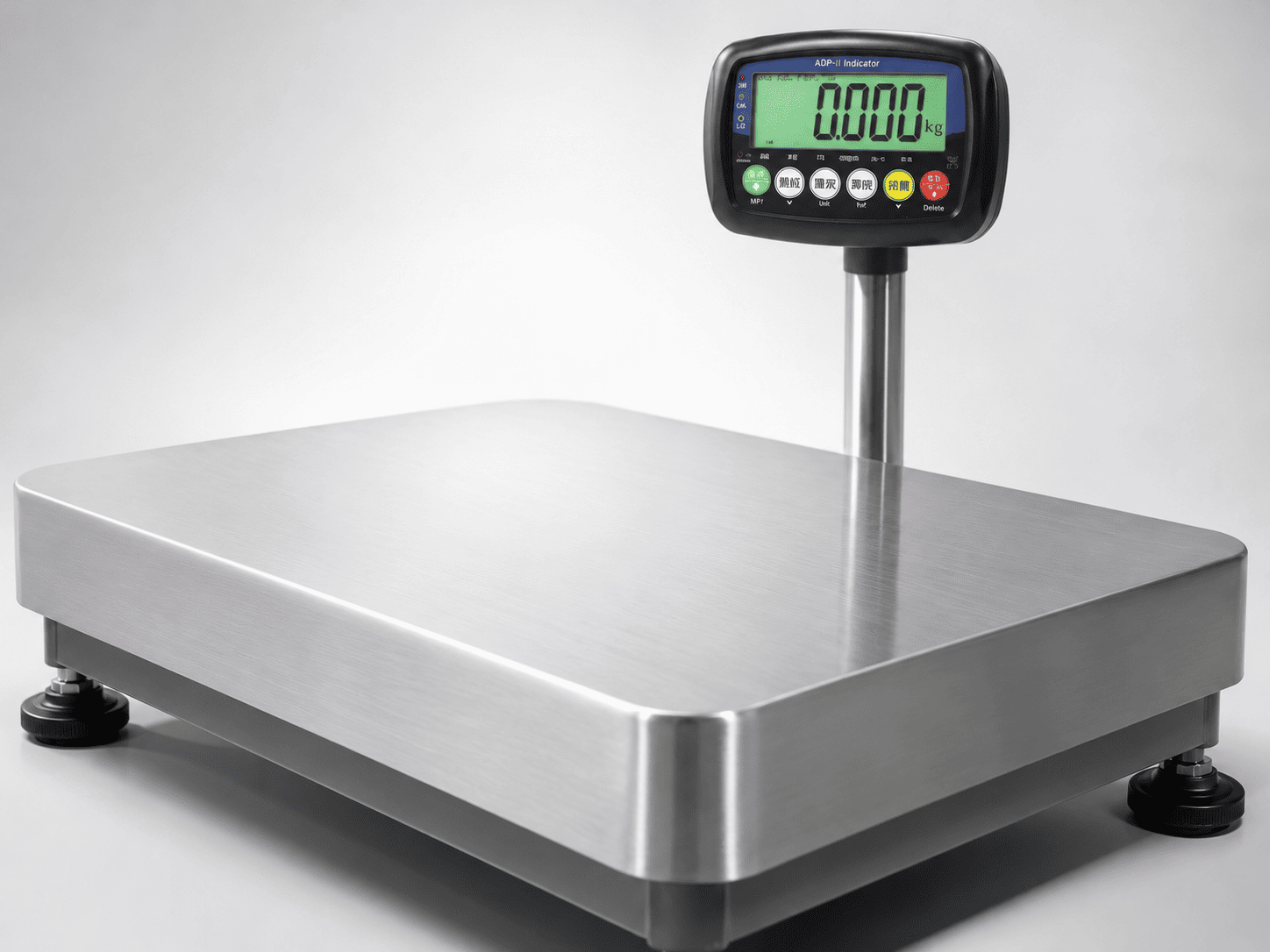

ADP-II High-Precision Bench Scale
accurate weighing, Smart Management, An ideal choice for improving operating efficiency.

ADP-II The weight indicator features 50mm extra-large LCD display and dual-color backlight, Data display is clear and easy to read, Suitable for long-term use in different working environments.

built-in high-precision AD conversion chip, Internal resolution up to 100 one ten-thousandth, Ensures stable and accurate results for every weighing operation.

also supports charging and battery storage, multiple weighing units, Dynamic Weighing, Automatic Zero Tracking, functions such as wind and vibration resistance, Meets diverse precision-weighing requirements across industries.

DISPLAY 50mm extra-large LCD
RESOLUTION 100 one ten-thousandth
BATTERY approximately 120 hours
CORE FUNCTIONS
Multiple Functions・precision management
Integrates commonly used weighing functions, Meets the needs of different industries and operating scenarios.
01
Counting Function
Counting Function
PCS
02
Upper and Lower Limit Display
Upper and Lower Limit Display
HI-LO
03
Dynamic Weighing Mode
Dynamic Weighing Mode
ANIMAL
04
Multi-Unit Conversion
Multi-Unit Conversion
UNIT
05
Accumulation Function
Accumulation Function
GATHER
06
Tare Function
Tare Function
WEIGHT
PRODUCT FEATURES
precision measurement・clear and easy to read
01
50mm extra-large digits

uses a large LCD display screen, Equipped with dual-color backlight design, Provides clear weight readings in different environments.

02
high precision AD chip

uses high precision AD conversion chip, Internal resolution can reach up to 100 one ten-thousandth, Improves weighing stability and accuracy.

03
diverse working environments

supports dynamic weighing, Automatic zero tracking with wind- and vibration-resistant functions, Can accommodate weighing requirements in different industrial settings.

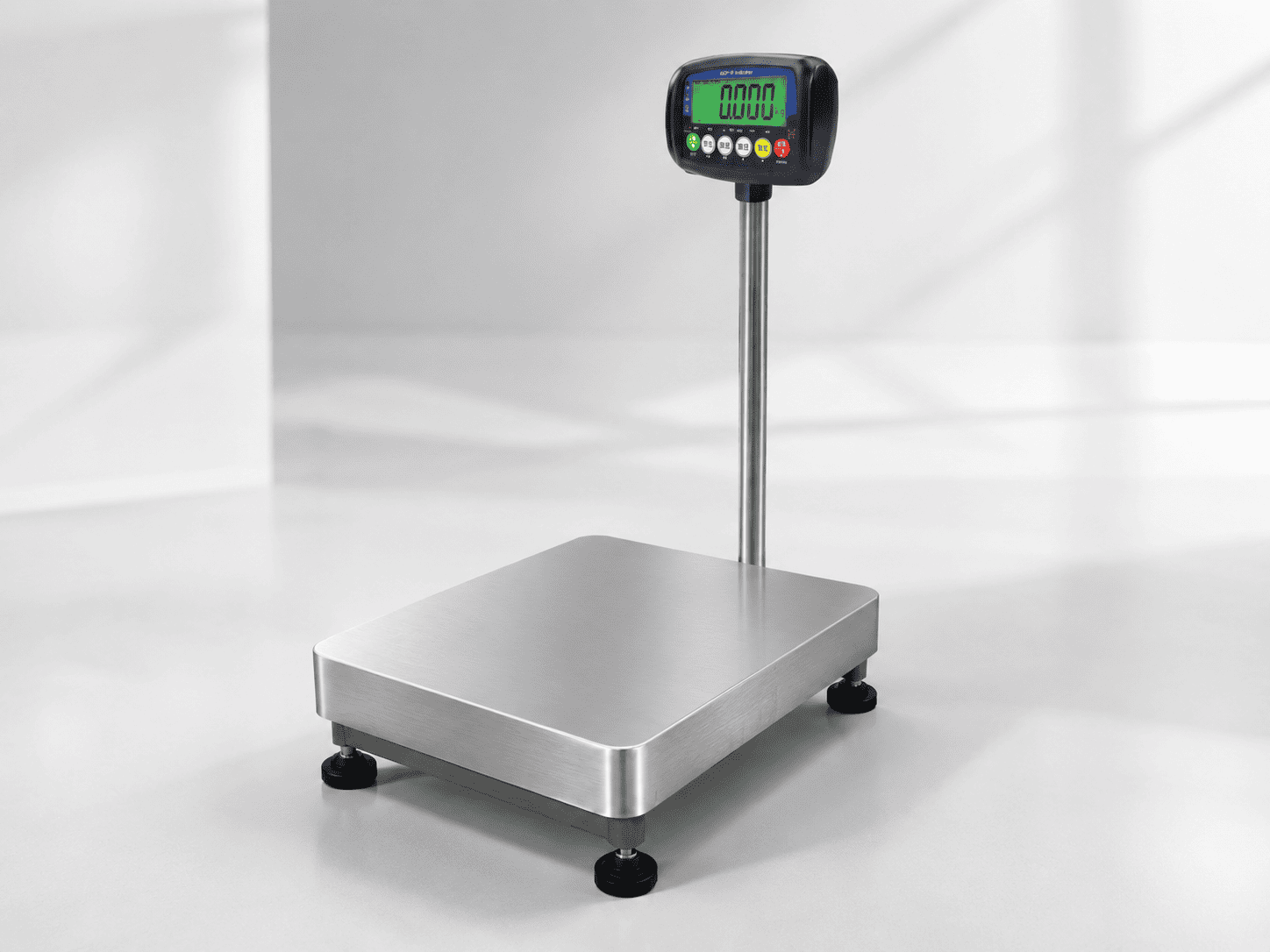

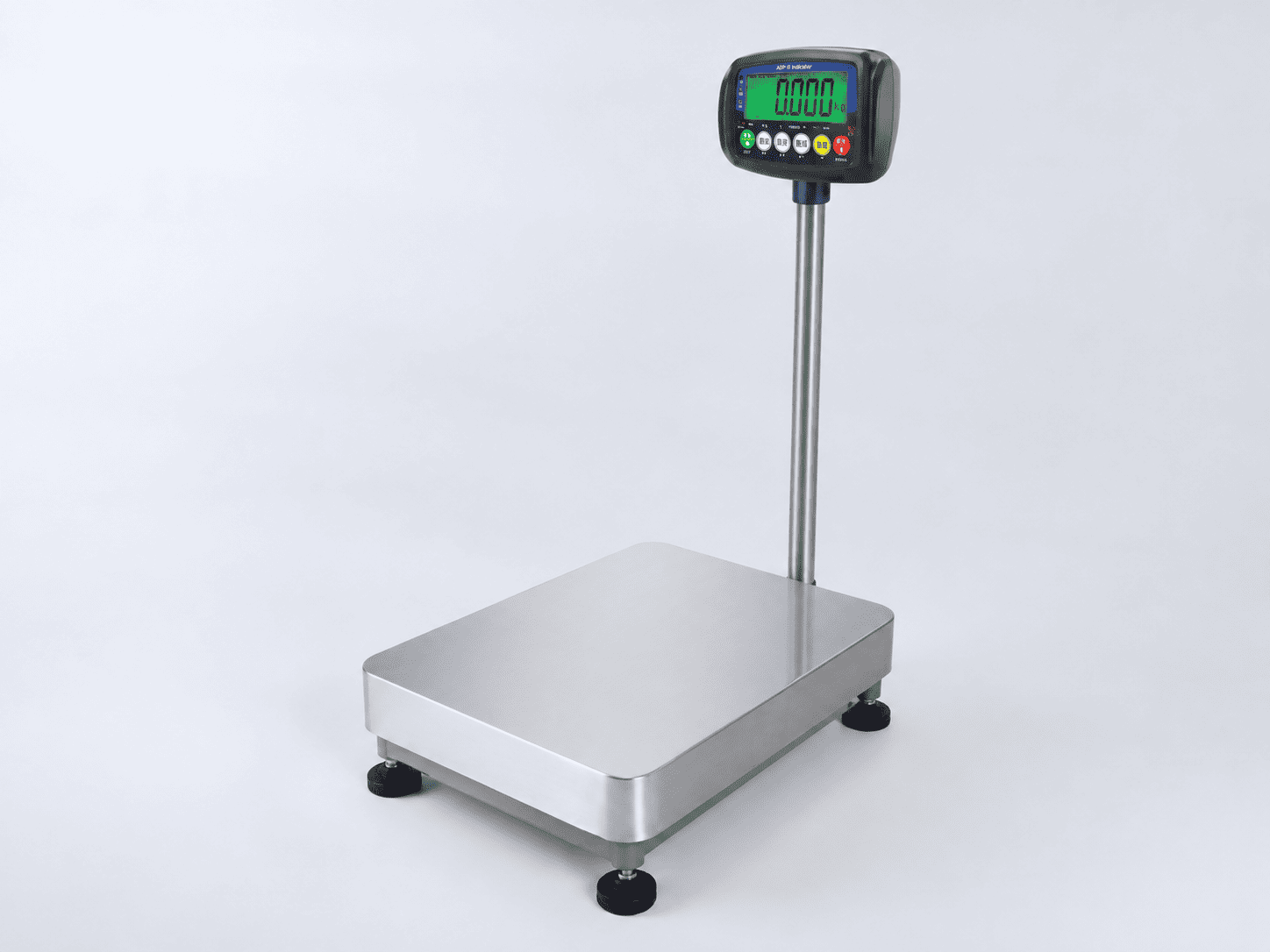

ADP-II High-Precision Bench Scale
ADP-II High-Precision Bench Scale Details
EQUIPMENT PERFORMANCE
smart display・long-duration operation

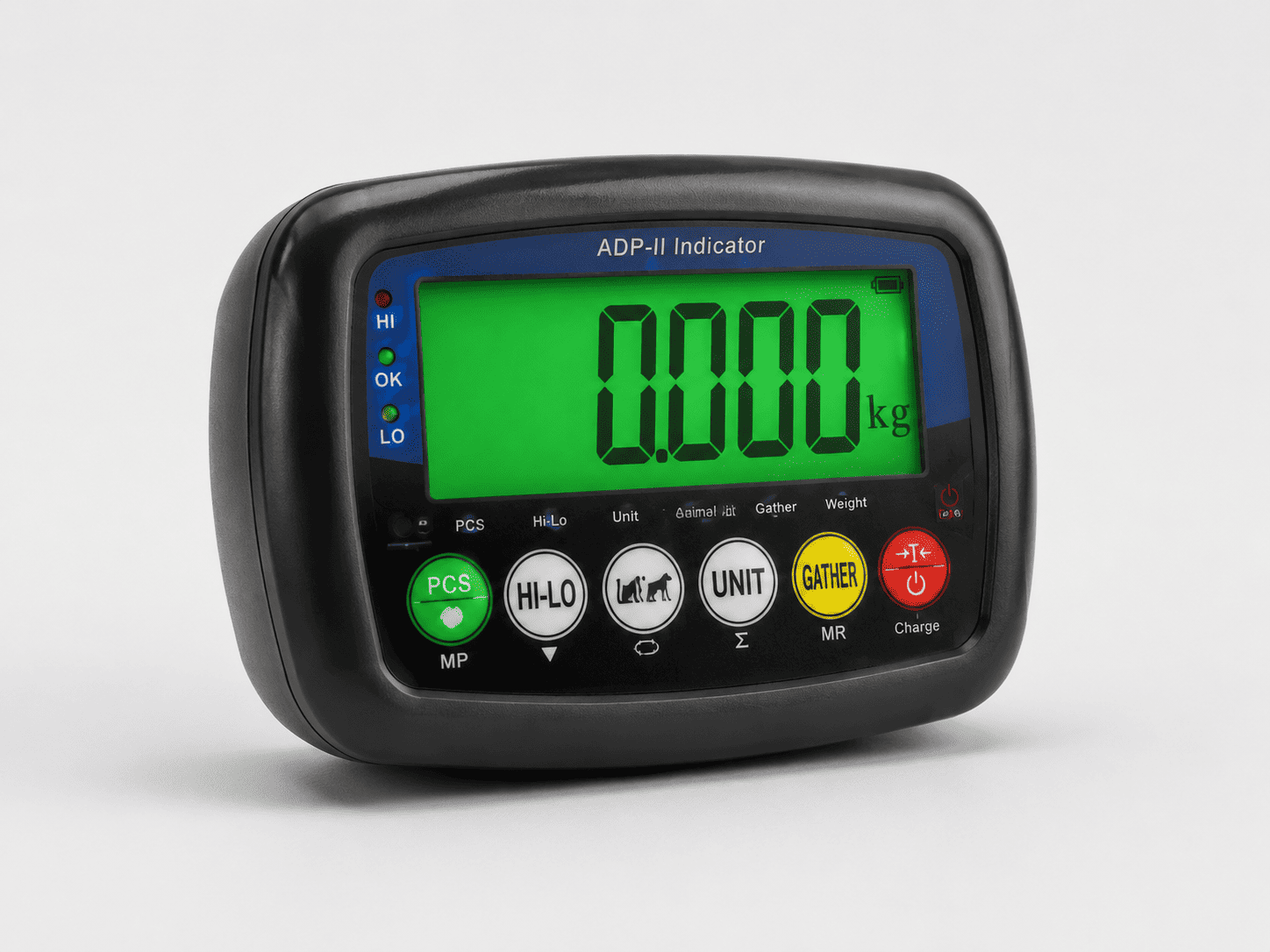

ADP-II Weight Indicator
01
dual-color backlight display

50mm large digits LCD Equipped with switchable dual-color backlight, Makes weighing data more prominent and easier to read.

02
rechargeable battery power

can operate continuously for approximately when fully charged 120 hours, Suitable for long operating hours and flexible mobility requirements.

03
Upper and Lower Limit Alerts

supports HI, OK, LO status determination and upper/lower limit alerts, Helps operators quickly confirm whether the weight is within the preset range.

04
One-touch reweighing

Provides quick reweighing operation, Helps users reconfirm and obtain an accurate weight.

SPECIFICATIONS
Specifications and Dimensions
Provides multiple platform sizes and weighing-capacity specifications, Can be selected according to the actual operating environment.
model Platform Dimensions Capacity Specifications
ASS 260 × 320 mm × 80 mm 30Kg × 1g / 60Kg × 2g / 150Kg × 5g
AS 330 × 450 mm × 100 mm 30Kg × 1g / 60Kg × 2g / 150Kg × 5g
AM 400 × 500 mm × 140 mm 60Kg × 2g / 150Kg × 5g / 300Kg × 10g
AN 420 × 520 mm × 160 mm 150Kg × 5g / 300Kg × 10g
AL 450 × 600 mm × 160 mm 50Kg × 10g / 300Kg × 10g
AE 600 × 600 mm × 165 mm 300Kg × 10g / 500Kg × 20g
AXS 600 × 800 mm × 180 mm 200Kg × 10g / 300Kg × 20g / 500Kg × 50g
AX 600 × 800 mm × 180 mm 600Kg × 20g / 1000Kg × 50g
JY SCALE · ADP-II SERIES
accurate weighing・Smart Management

multiple size and weighing-capacity options, Meets precision-weighing needs across different industries.
